EGG Candling Machine

Products

For Breeders & Hatcheries

The world’ s first technology
Inspection system with over 99% detection accuracy.

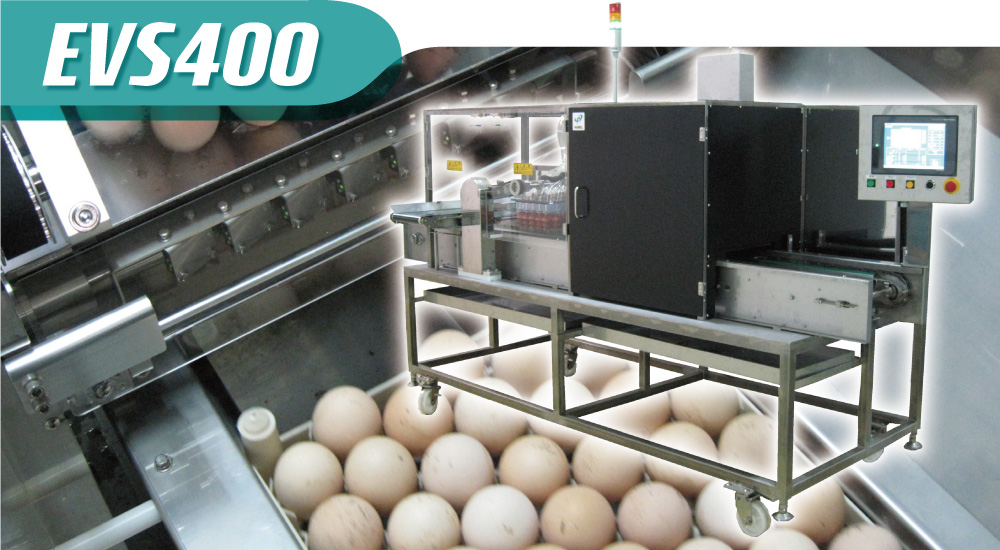

EVS400 detects heartbeats and fetal activities of the hatching eggs to accurately differentiate the normal ones from rotten, dead-in-shell and infertile. We have succeeded for the first time in the world in removing rotten and dead-in-shell eggs which were otherwise difficult to identify with the existing systems.

Features Specifications

Features

Product features

Detects rotten and dead-in-shell eggs

Detects and removes rotten (bursting) and dead-in-shell eggs which were previously impossible to identify through recognition of vital signs including heartbeat and fetal activity.
For any days of incubation

Inspects and classifies eggs in incubation from the 10th day onwards.
Darker colored eggs also inspected

Performs inspection for both layer and broiler in any eggshell color.
Displays realtime results

Displays real-time results analyzed per tray through Touch Panel. Also collects and captures percentage data for percent fertility, infertility and embryonic mortality for each lot.

Hygenic structure

Well-considered design with hygienic aspects based on know how accumulated through actual egg inspection fields.

1. Manufactured in stainless steel, and totally waterproofed for easy cleaning and hygienic.

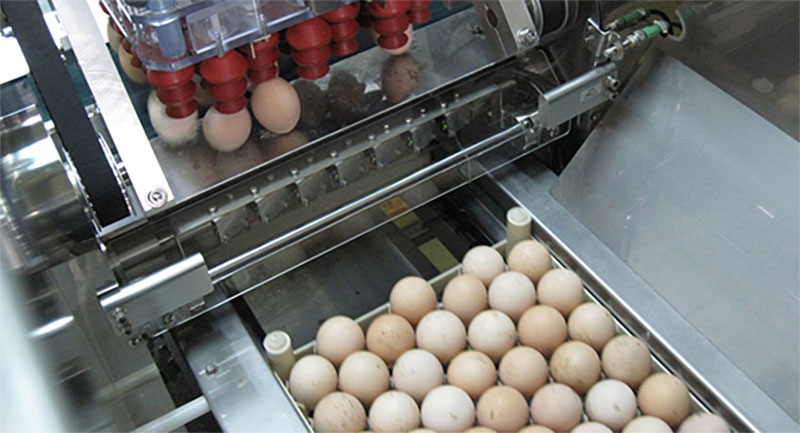

2. Rubber suction cups that come in contact with eggs can be easily detached, replaced, and cleaned for inspection and removal. Highly hygienic as they can be immersed for sterilization.

Specifications

Code	EVS400
Capacity	40,000eggs/hour (Max.)*
Power	3-phase 200V 15A
Air capacity	350L/min.*
Dimensions	2,980（W）×1,550（H）×1,165（D）mm*

※Specifications may vary according to the forms of setter trays.

Designs and specifications are subject to change without notice.
